Pressfitting systems in carbon steel, steelPRES / Carbon steel

steelPRES / Carbon steel

Pressfitting systems
in carbon steel

steelPRES is the Pressfitting system by Raccorderie Metalliche in carbon steel developed for any closed circuit applications where it is not necessary to use stainless steel, which it is to be considered a valuable cost-effective alternative.

steelPRES material

E195 carbon steel.

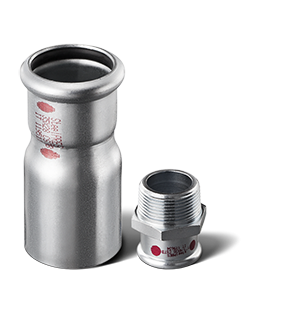

The steelPRES product range consists of pipes, fittings and installation materials. The range of steelPRES pipes and fittings is approved by many certified international institutions. 9 certifications, obtained by Raccorderie Metalliche on the steelPRES product, confirm quality and reliability for applications such as heating, cooling, compressed air and fire protection.
The range of pipes in carbon steel according to the UNI EN 10305-3 standard consists of welded, bordered and calibrated pipes in three different configurations:

Externally galvanized
Externally galvanized and covered in polypropylene (1 mm thick)
Internally and externally galvanised in sendzimir.

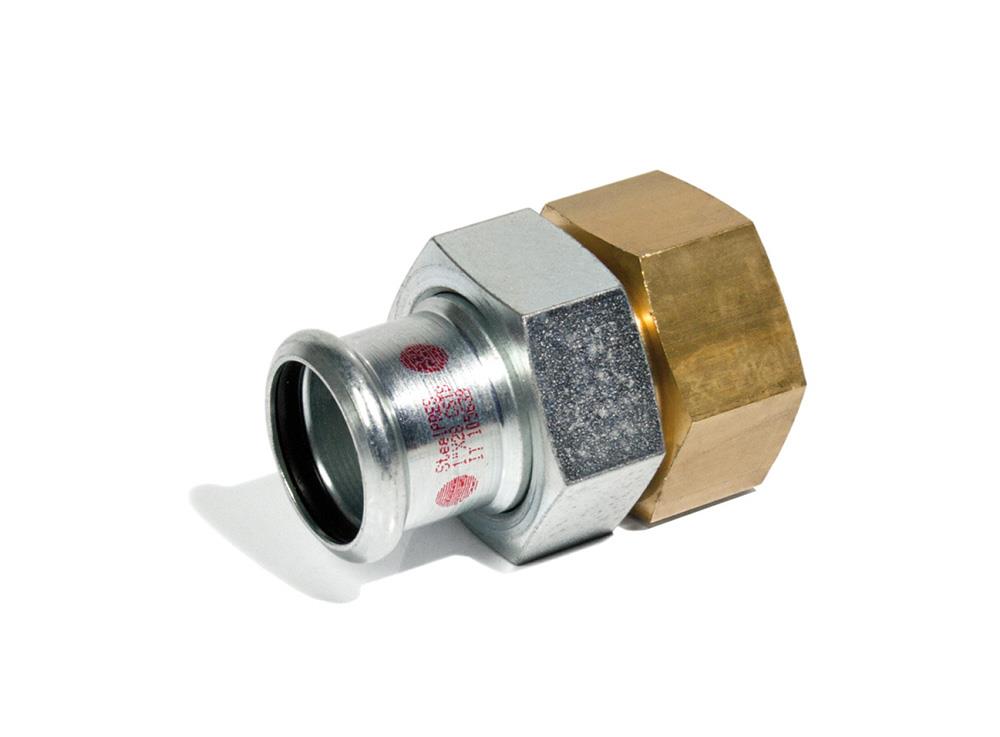

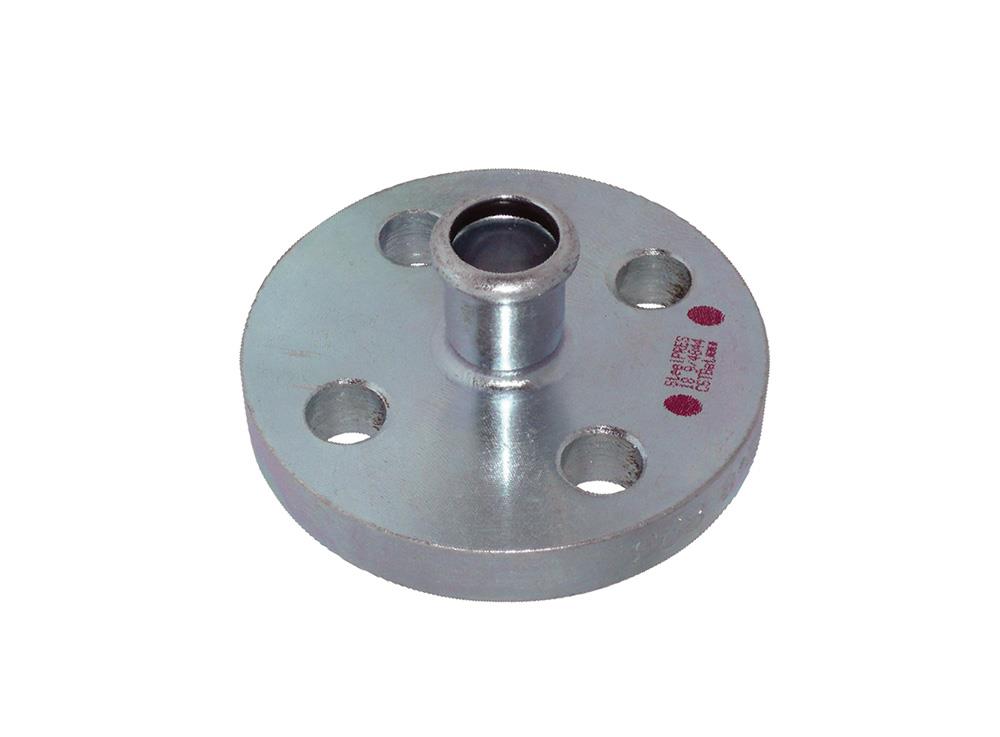

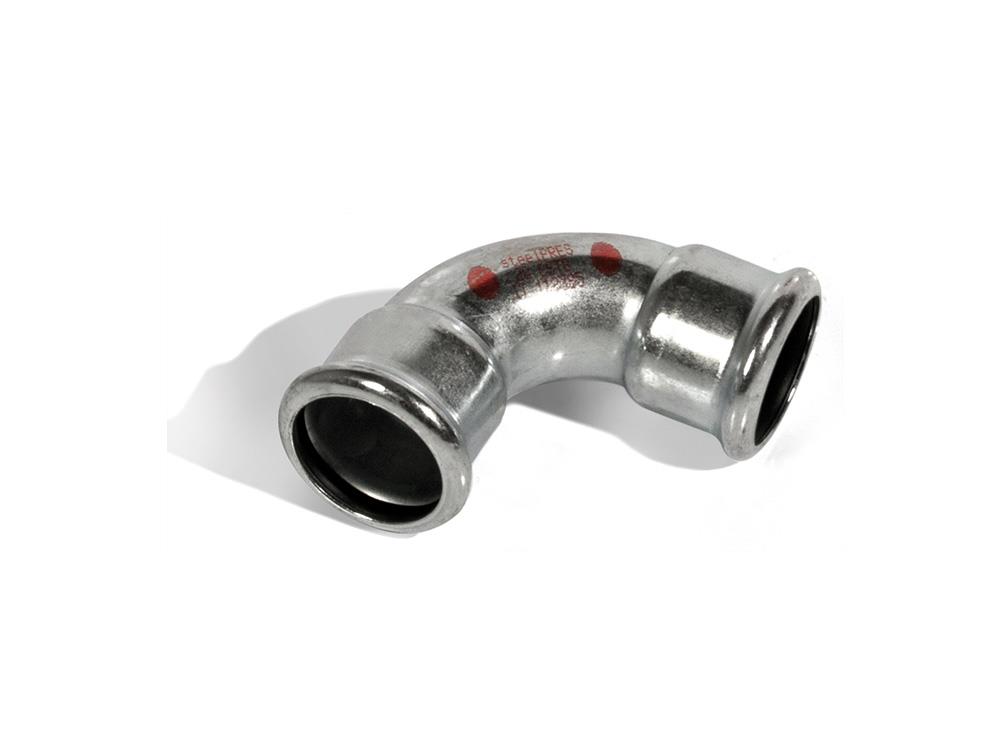

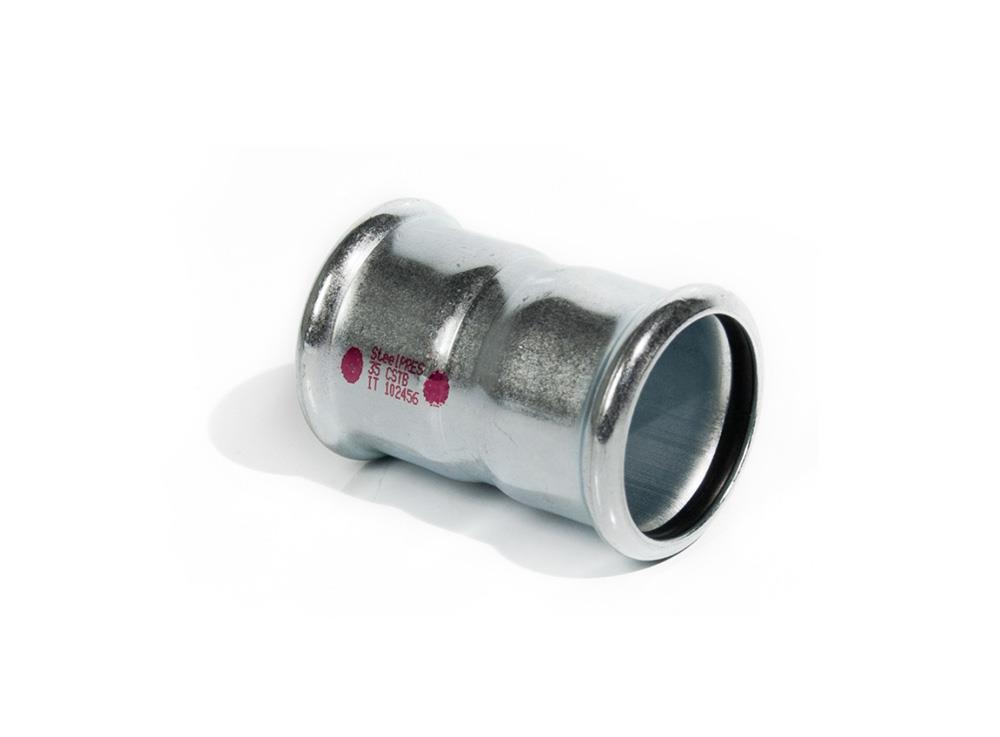

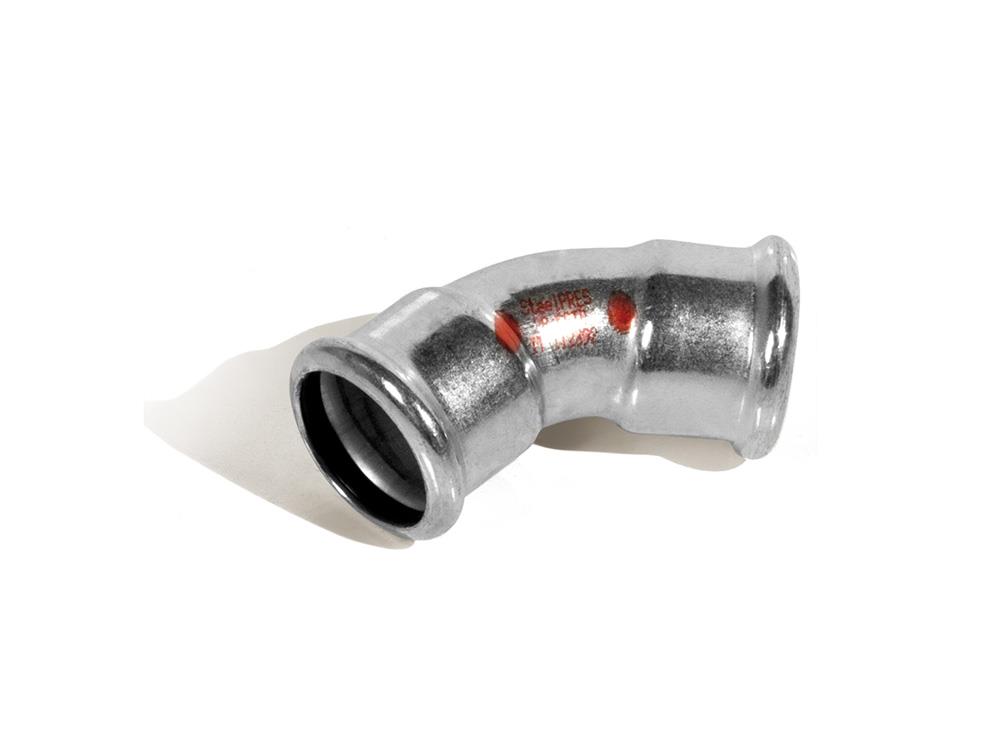

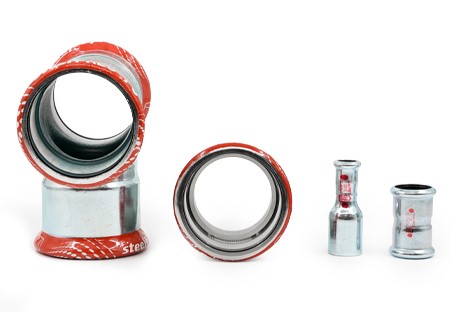

Fittings are made in unbounded E195 steel, galvanized with a zinc layer (to increase protection against external corrosion) and fitted with a “M-shaped” profile toroidal chamber, optimized thanks the 25 year research experience. Any fitting is factory mounted, with an EPDM O-Ring, with a patented profile at the end of production.
Pipes and joints are available from Ø12 to 108 mm.

Why chose steelPRES

A wide range of fittings and pipes Ø 12-108 mm, E195 (fittings) and UNI EN 10305-3 (pipes).

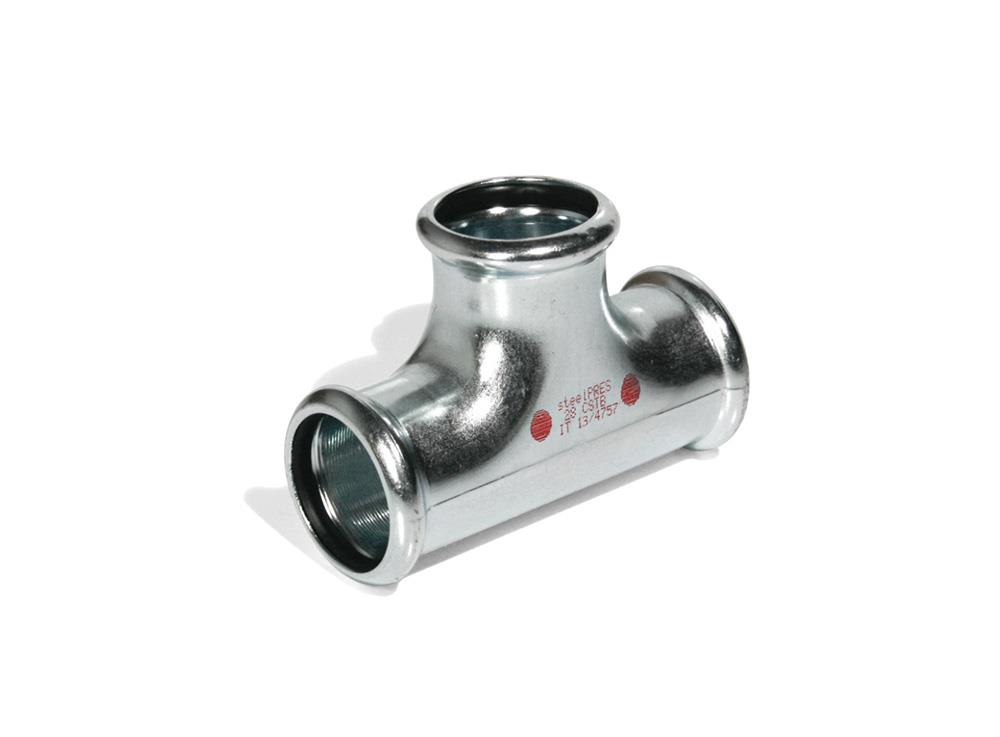

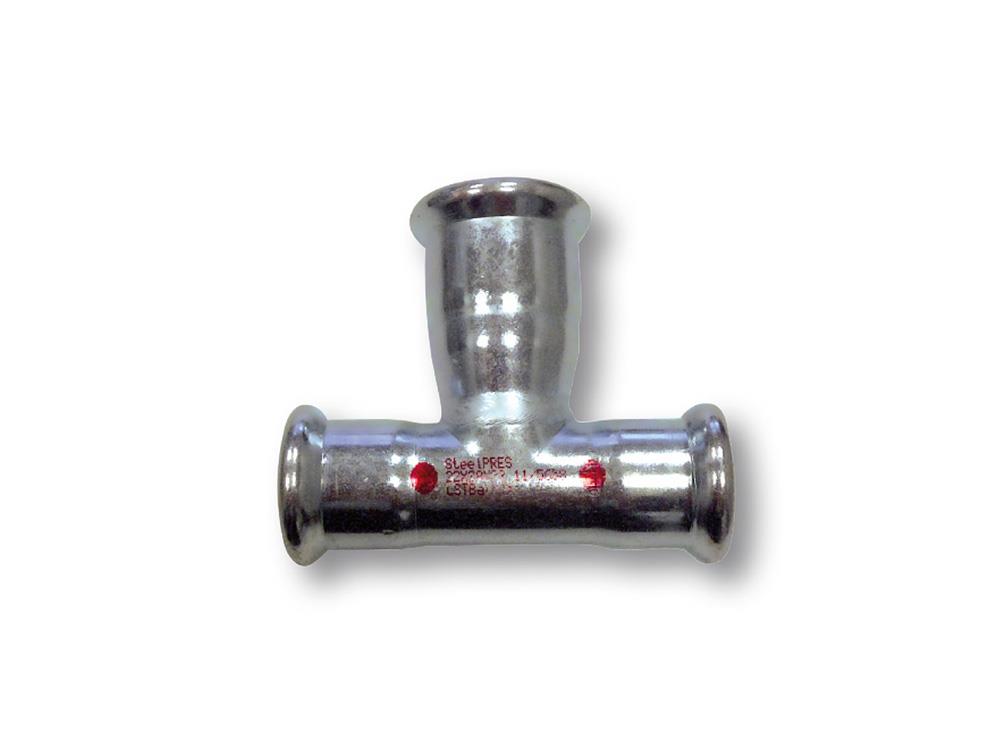

A wide range of seamless Tees, patented by Raccorderie Metalliche.
A wide range of reliable joints, fitting the Raccorderie Metalliche patented O-Ring.
More than 14,000 square meters available for the products

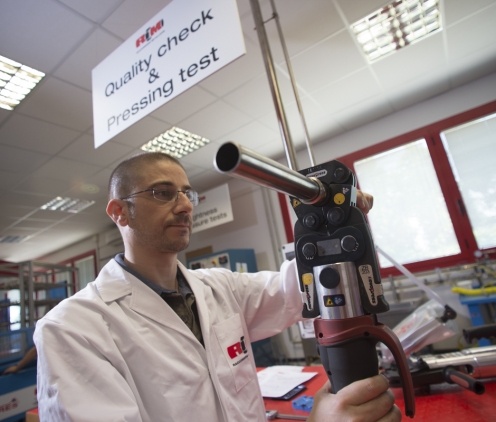

A wide range of approved pressing machines to be used for the steelPres system
A solution with the best quality-price ratio in terms of products and services
100% Italian know-how.

Where to use steelPRES

Products and services are developed to solve at best the different installation problems and issues, aiming at quality, safety and speed.

Carbon steel is the best solution where stainless steel features are not demanded and where a cost-effective product is required. The use of steelPRES by Raccorderie Metalliche is suitable to make civil and industrial plumbing and sanitation closed loops for heating and cooling, compressed air installations. O-Rings can be used between -20 and +120°C, minimum pressure 16bar providing for quality and safety as well.
