aesPRES GAS

Pressfitting systems
in copper and bronze for GAS

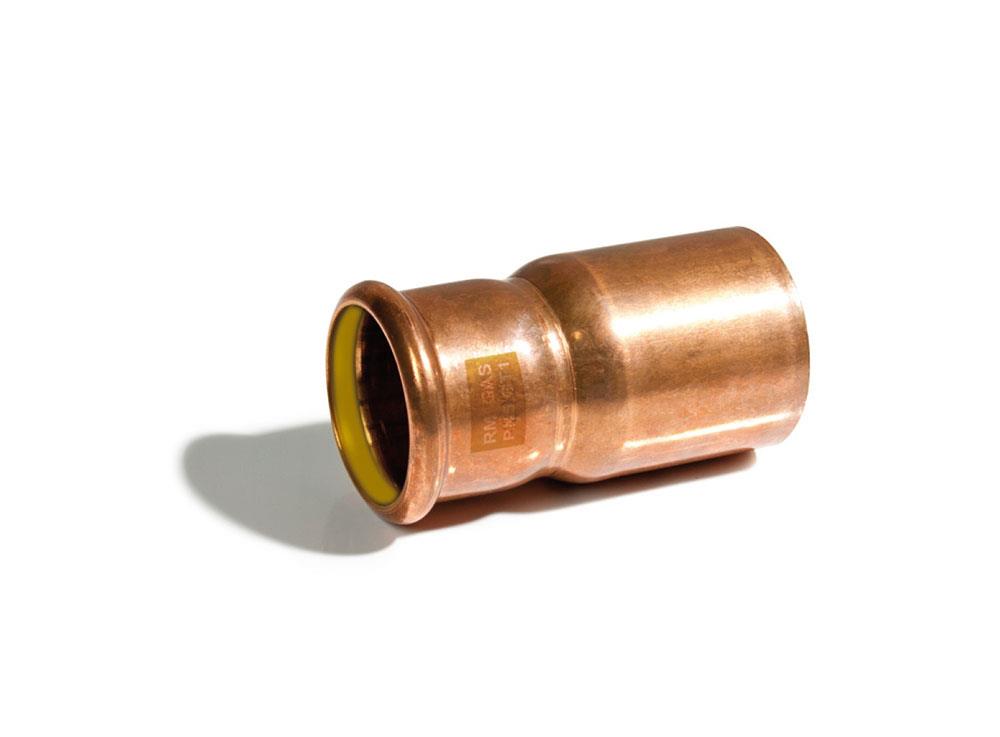

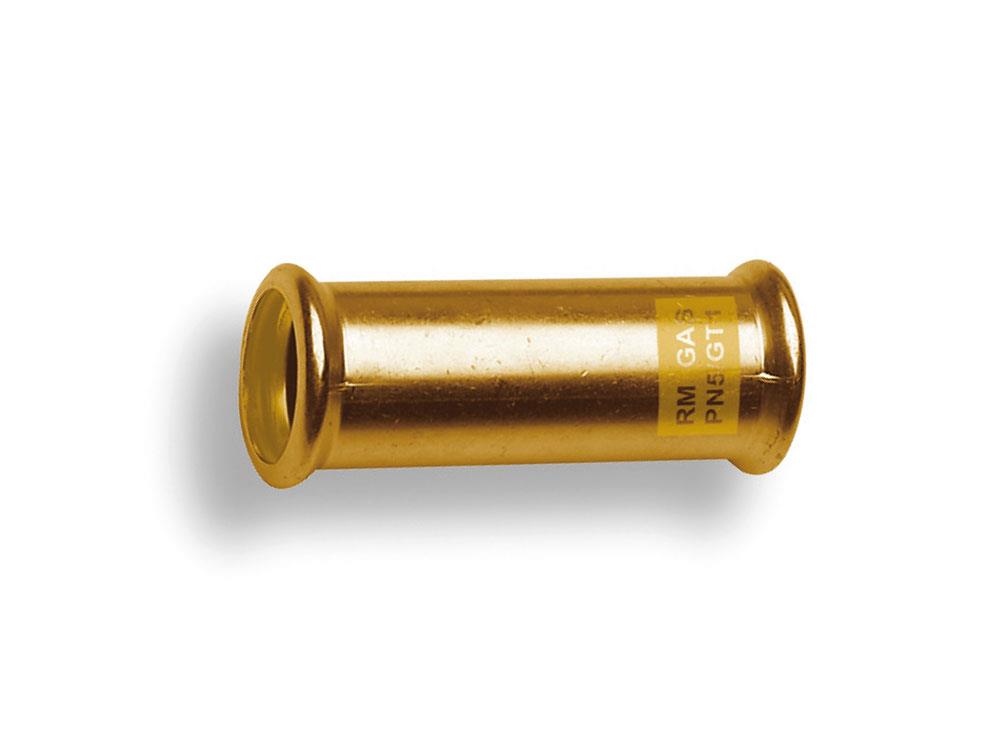

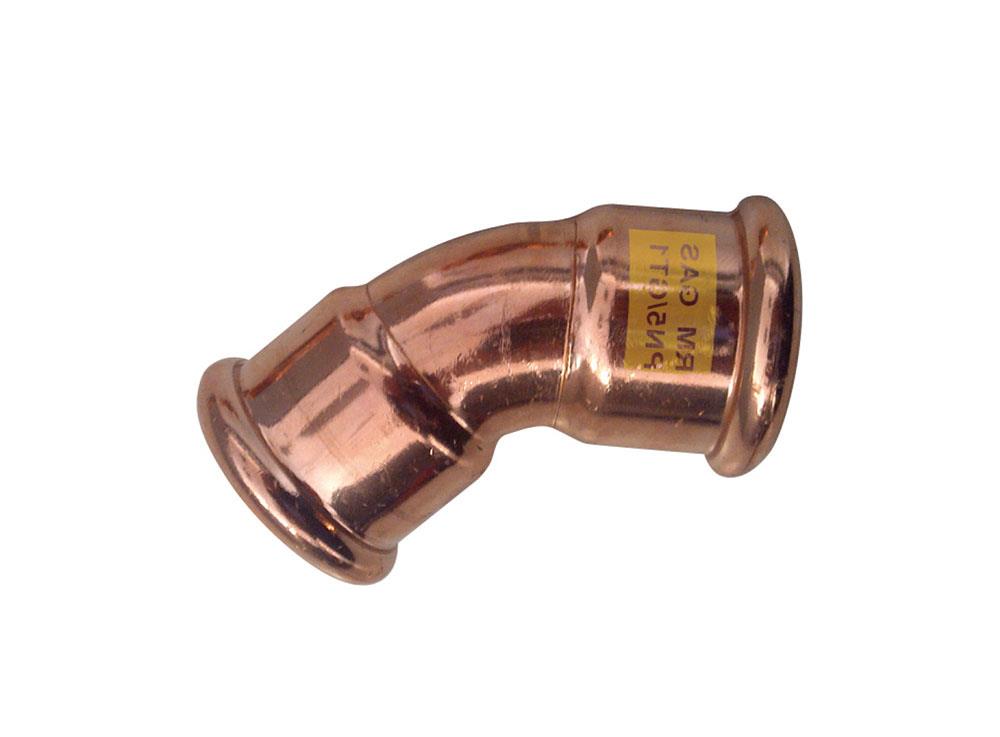

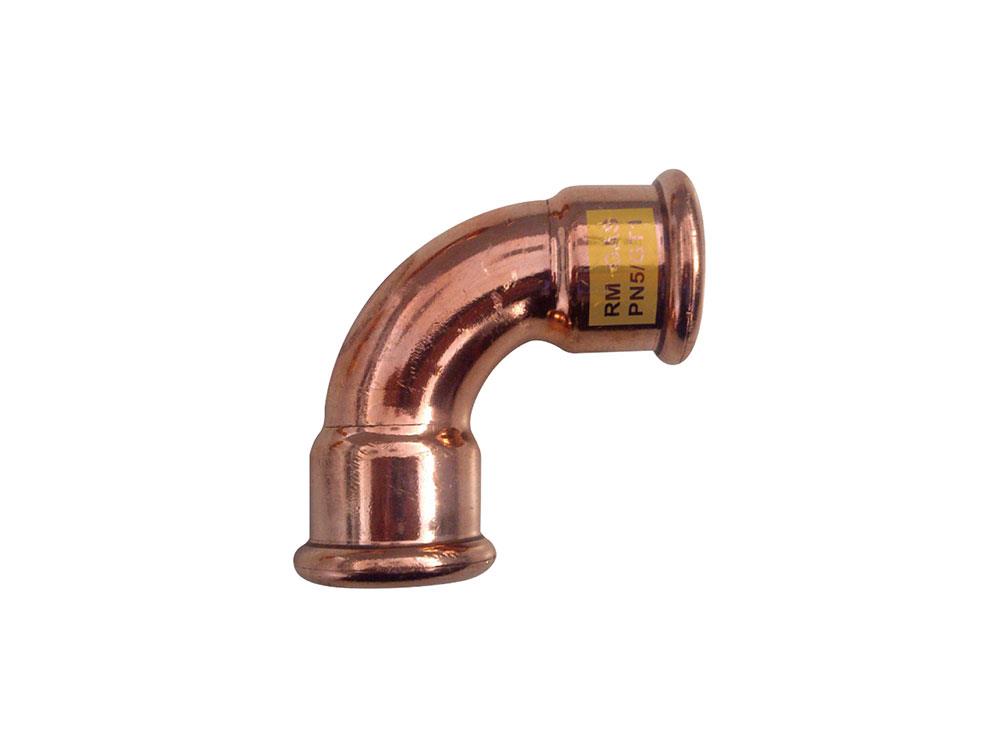

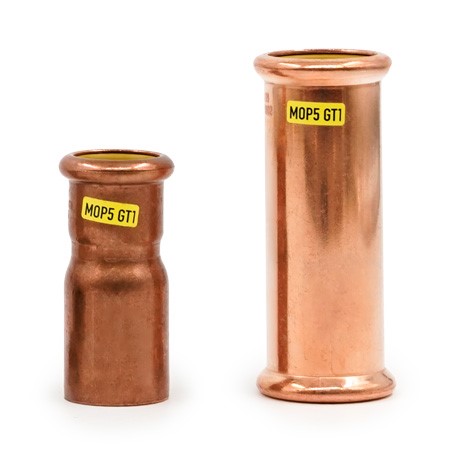

aesPRES GAS is the Pressfitting system by Raccorderie Metalliche in copper developed for any natural gas application. It stands out of its yellow marking and yellow O-Ring.

The material consists of aesPRES GAS

Copper Cu-DHP 99.9 / Bronze CuSn5Zn5Pb2 – CC499K.

Materials: The fittings are crafted from high-quality DHP copper and are available in sizes ranging from 12 to 54mm. It is with this material that an immediate comparison arises between Pressfitting and traditional methods such as brazing, highlighting all the advantages of the products from Raccorderie Metalliche. The fittings are equipped with an 'M profile' toroidal chamber, optimised based on Raccorderie Metalliche's experience, with an O-Ring developed by Raccorderie Metalliche mounted directly at the factory. This O-Ring is the result of patented innovation. In each fitting, a patented O-ring is factory-installed. This O-Ring is made of HNBR compound, specifically developed for this use. The aesPRES GAS fittings range is also internationally certified by the most accredited international bodies, with specific tests for natural gases.

Why chose
aesPRES GAS

The lenticular O-Ring RM that enhances installation safety and enables faster connection speeds.
A warehouse spanning over 14,000 square metres with products always in stock.
A product line developed for GAS applications, where each fitting is already equipped with a dedicated O-ring.
An affordable solution in terms of price and service.

Where to use aesPRES GAS

Products and services developed to better solve the many problems and issues in terms of installation, aiming at quality, safety and speed.

Copper is strictly linked with civil and industrial natural gas plants. The aesPRES GAS fittings range besides being quality and reliable products, perfectly matches practical installation and Pressfitting system benefits. The yellow O-Ring can be easily used at -20°/+70°, maximum pressure 5bar PN5/GT1 with the same quality and safety.
