fittings in stainless steel, Stainless steel

Stainless steel

Welding and threaded fittings
in stainless steel

High corrosion resistance to the installation service.

Products in the present product range are made in AISI 304/304L/316/316L austenitic stainless steel. The material is highly resistant to corrosion, widely used in pressure, water treatment, potable water treatment, compressed air and technical gas distribution plants.

Our range
of stainless steel fittings

Within the company General Catalogue, this product line is marked in BLUE and includes:

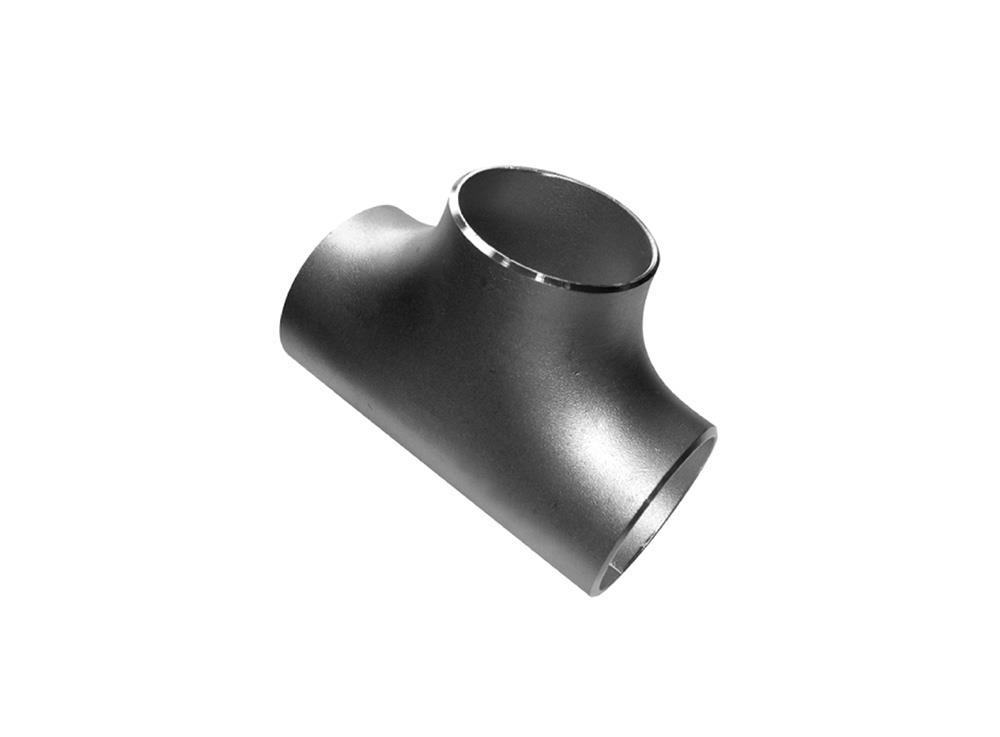

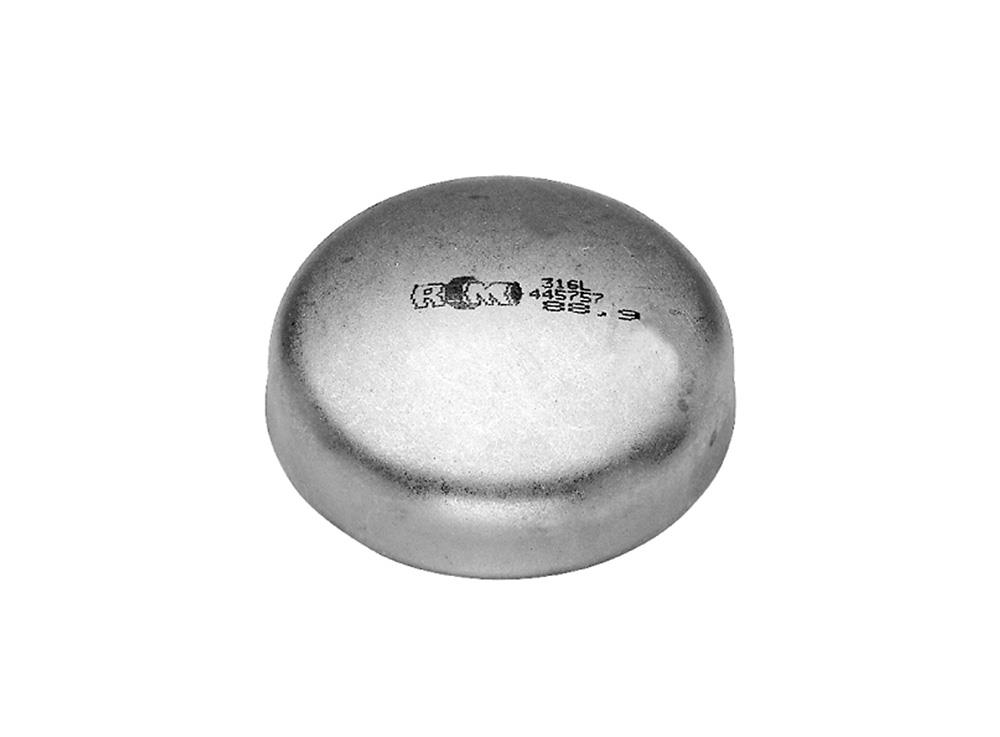

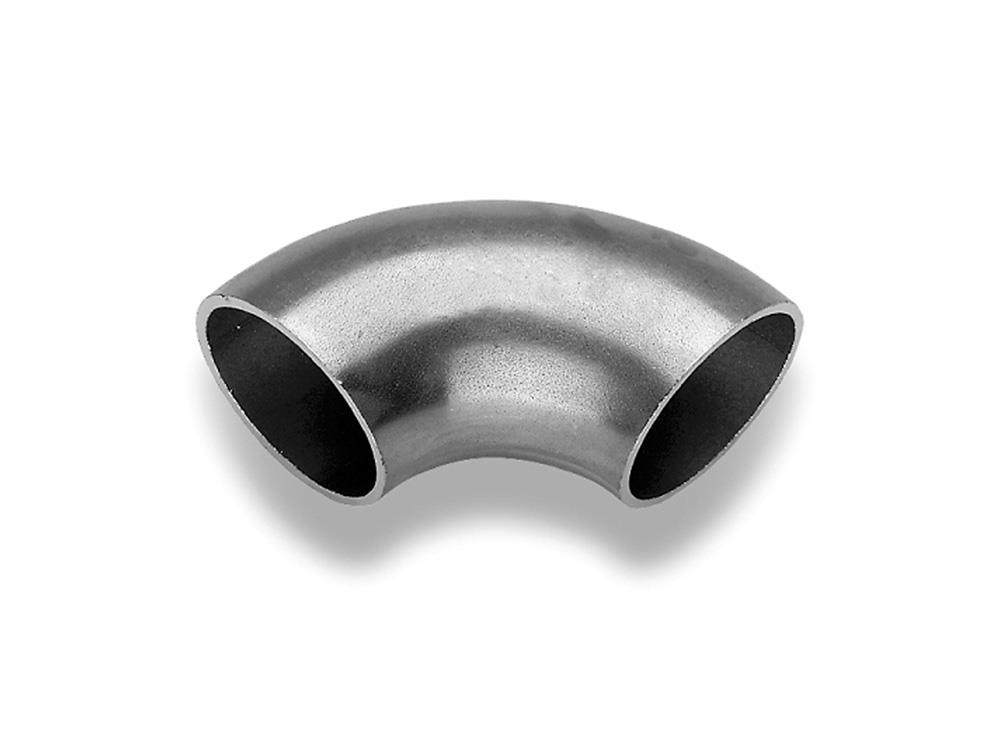

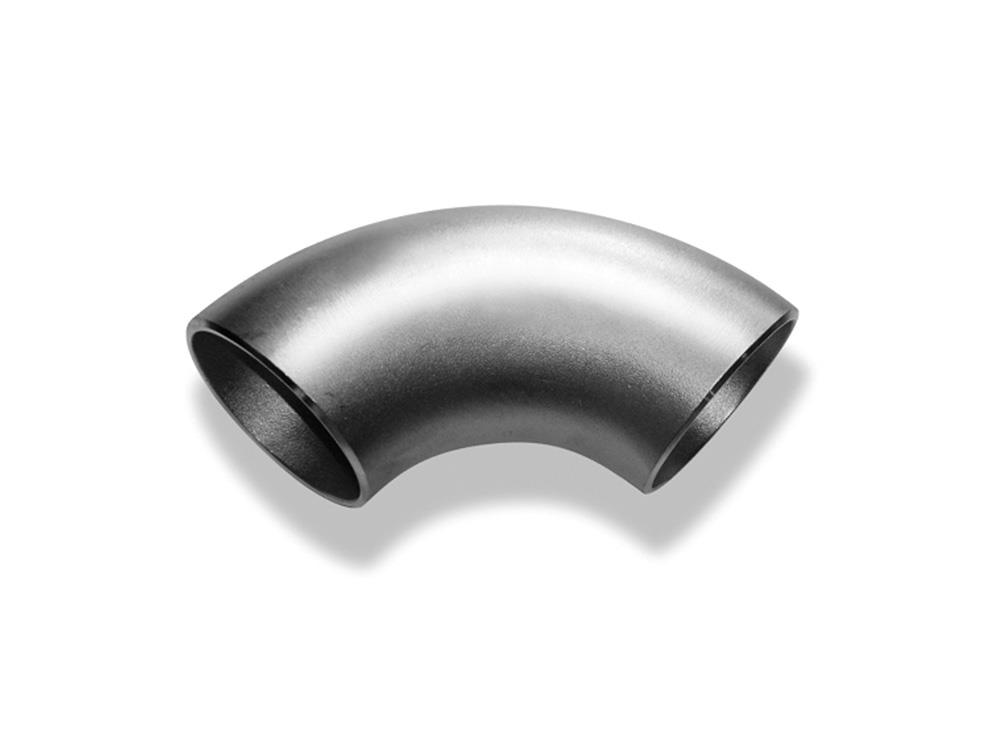

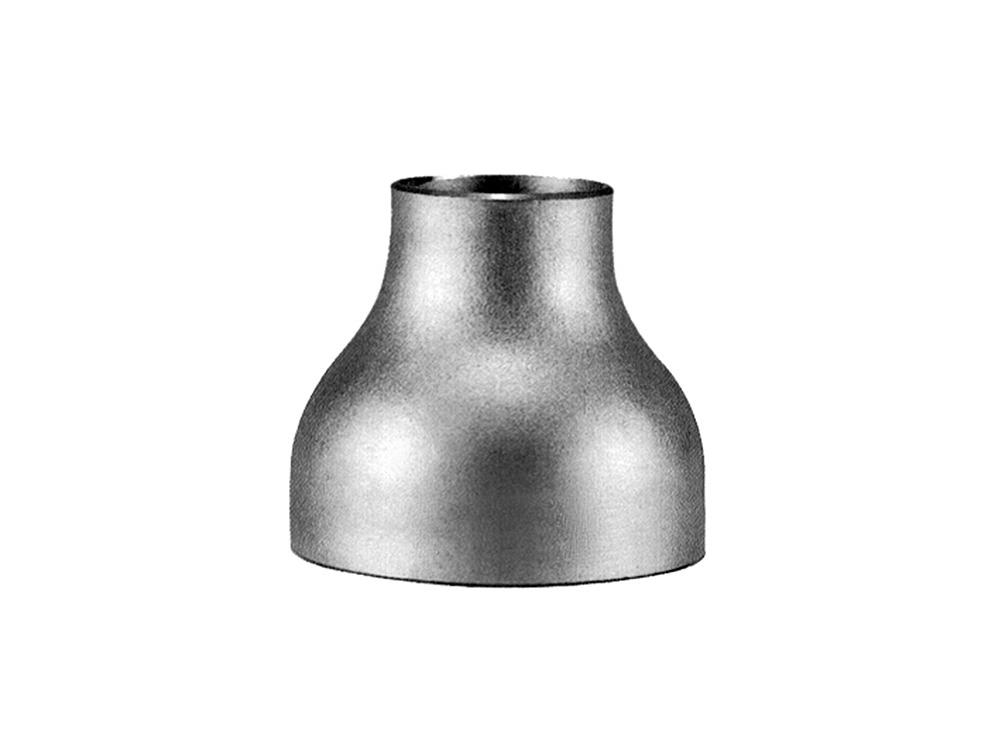

Bends, Concentric reducers, Caps, and Tees with butt welding ends, available in AISI 304L and 316L, in thicknesses of 2 and 3 mm. Compliant with the EN10253-3 standard (DIN2605)

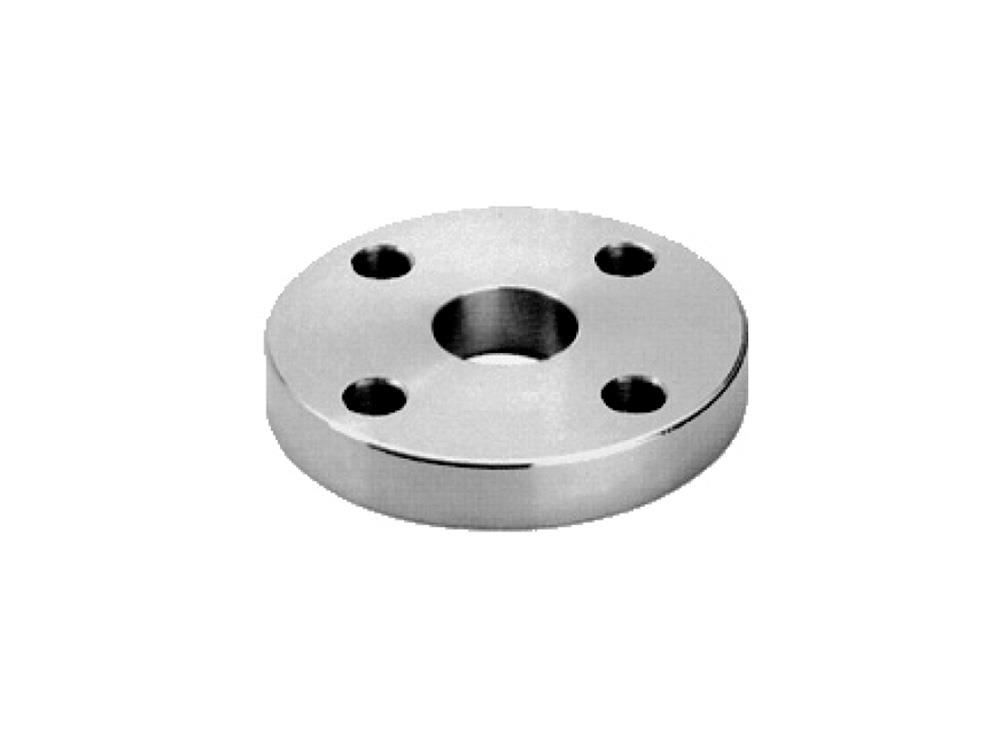

Flat Flanges and Reduced Thickness Flat Flanges, 'microfused' in AISI 304, meet the UNI 2277/2278 standard, and are available from DN 15 to DN 300 (DN40-300 for Reduced Thickness Flat Flanges)

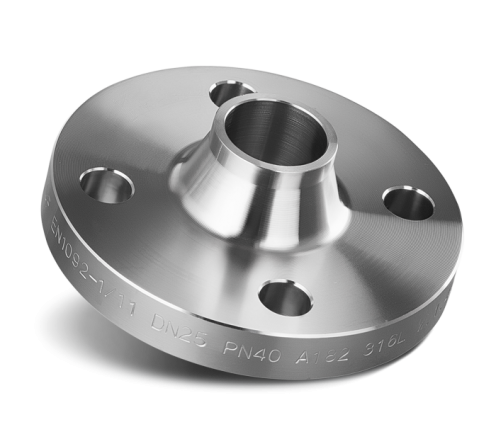

Flat Flanges, Collared Flanges, and Blind Flanges, 'forged' in AISI 304 – AISI 316, comply with the EN 1092-1 standard, and are available from DN 15 to DN 500

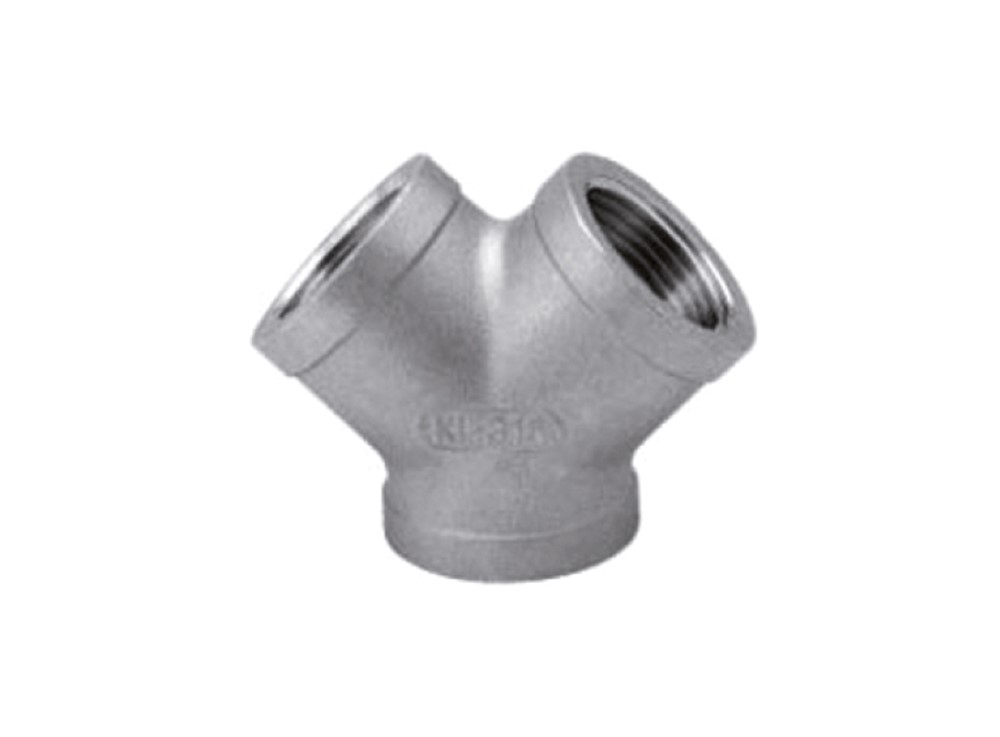

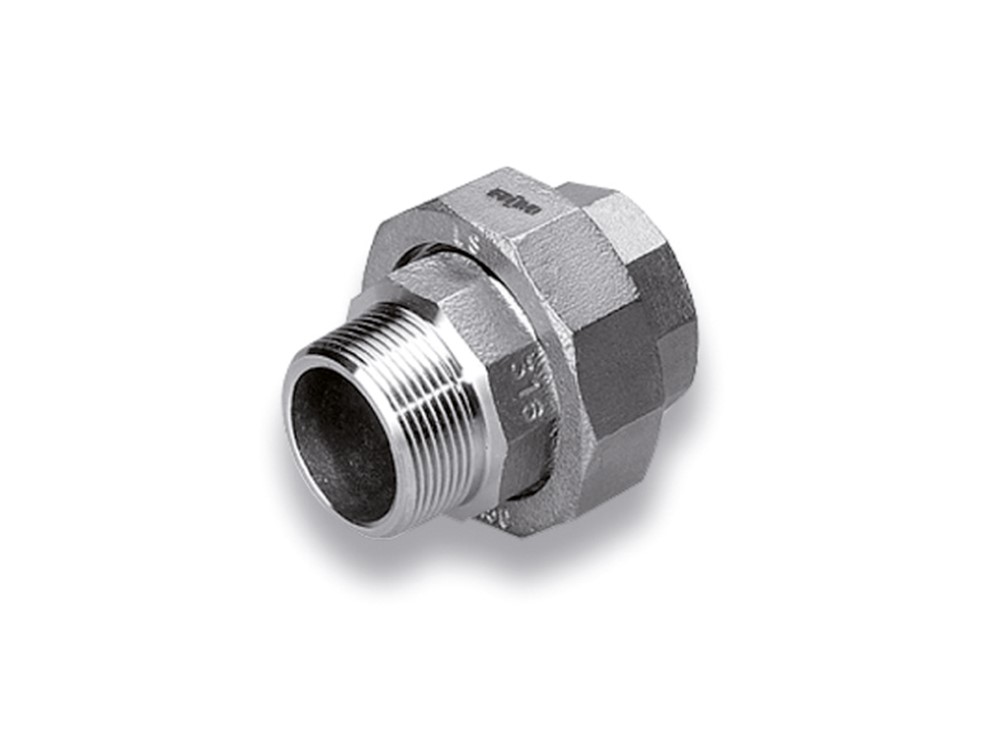

A complete range of threaded fittings in AISI 304 – 3016 that meet the EN10226-1 standard (ISO 7/1 and ISO 228) and are available from 1/8'' to 4''

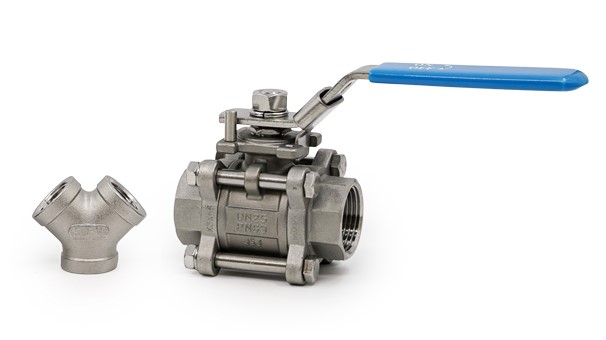

Ball valves made up of 1, 2, and 3 pieces, flanged, with reduced and full bore in AISI 316 material
Pipe clamps in AISI 304 in both standard and rubber versions
Fixing systems: profiles, logs, screws, brackets, and shelves in AISI 304

Where are use

We develop products and services to solve the widest range of installation problems in the best possible way, focusing on quality, safety and speed.

threaded fittings available in stainless steel material are suitable for water, compressed air, gas, oil and steam conveying systems. At a class of 150psi, the temperature range extends from -20 to +200°C. The operating pressure varies with temperature as detailed in the technical tables.
