Pressfitting systems in cupronickel, marinePRES / Cupro Nickel

marinePRES / Cupro Nickel

Pressfitting systems
in cupronickel

marinePRES is the Pressfitting system by Raccorderie Metalliche developed in a special copper/nickel alloy. The material in time proved to be the most resistant and performing solution in saline ambiences.

marinePRES material

Cupronickel 90/10.

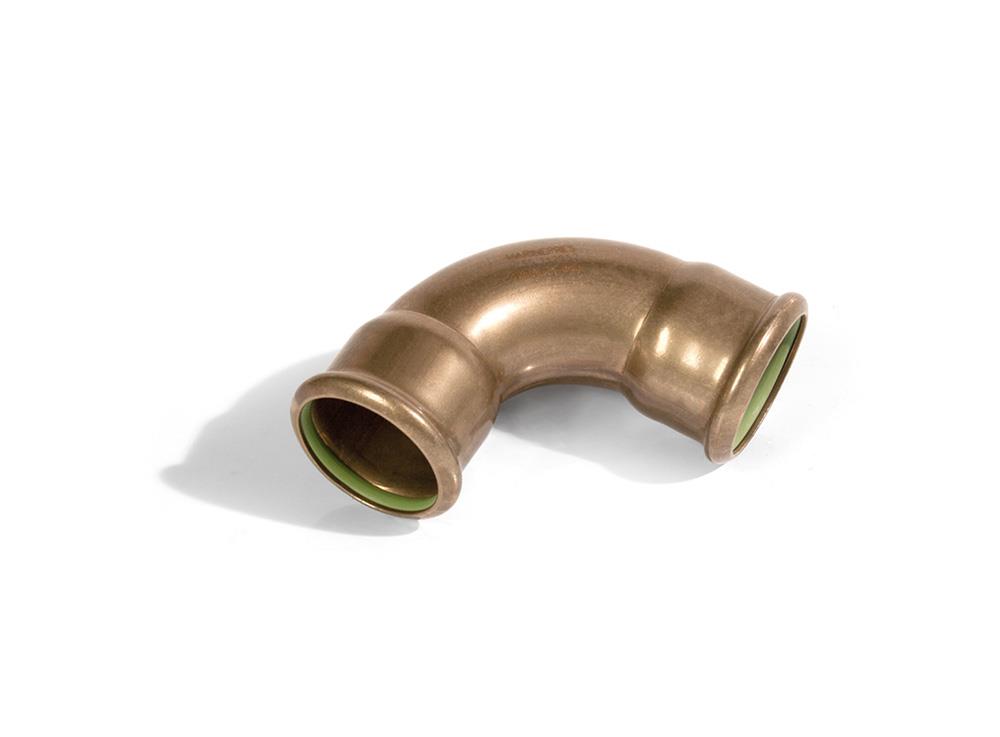

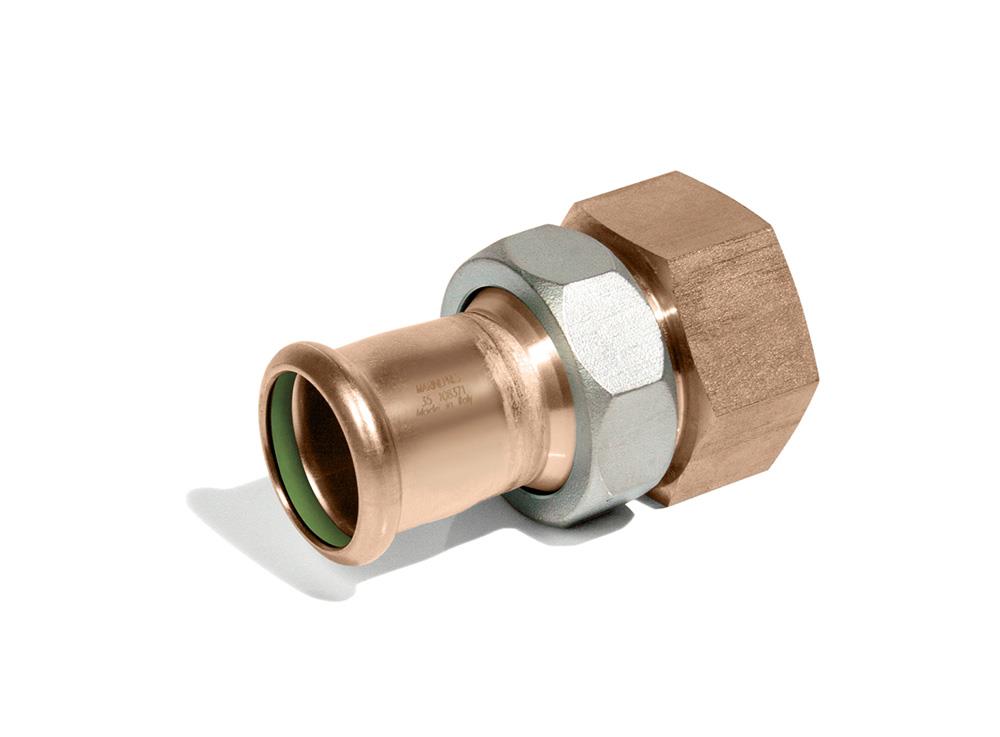

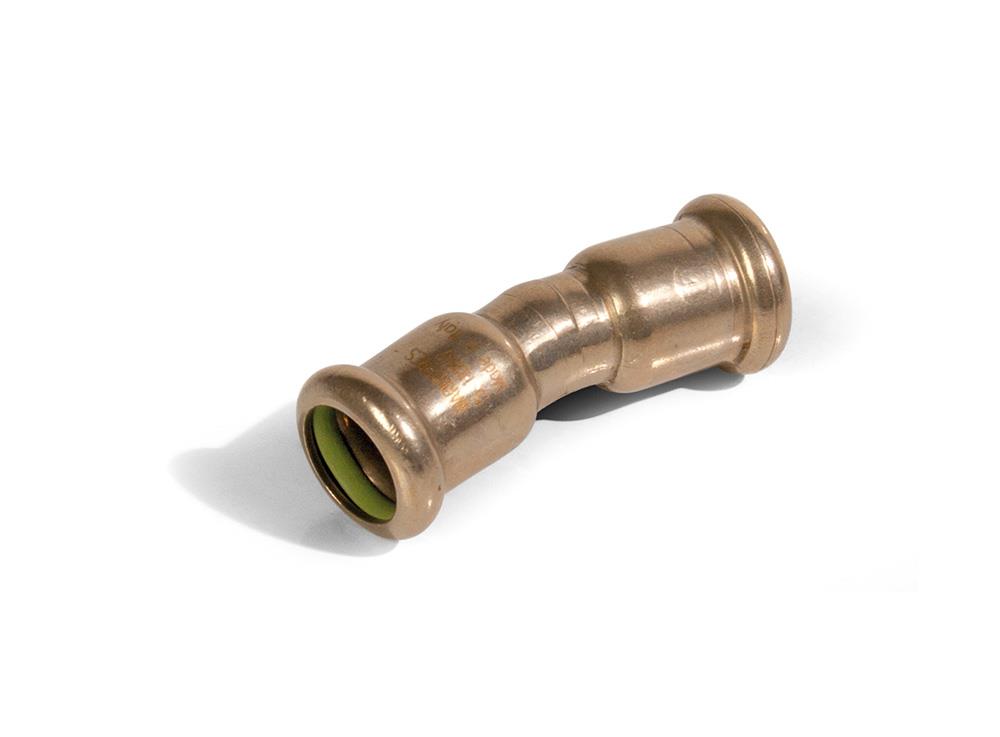

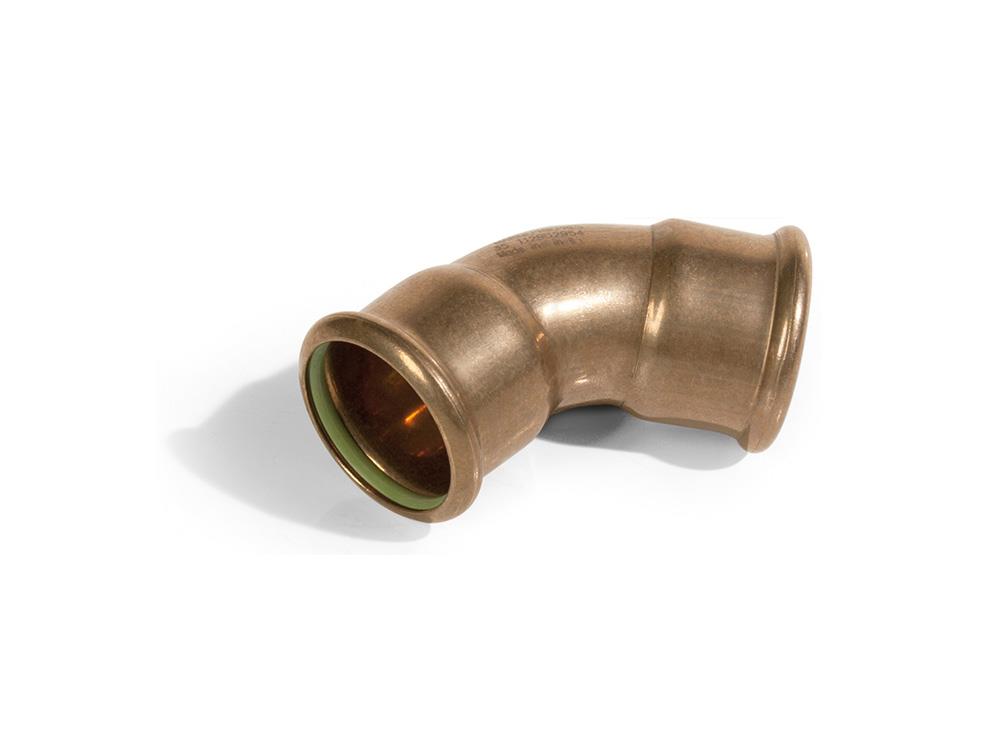

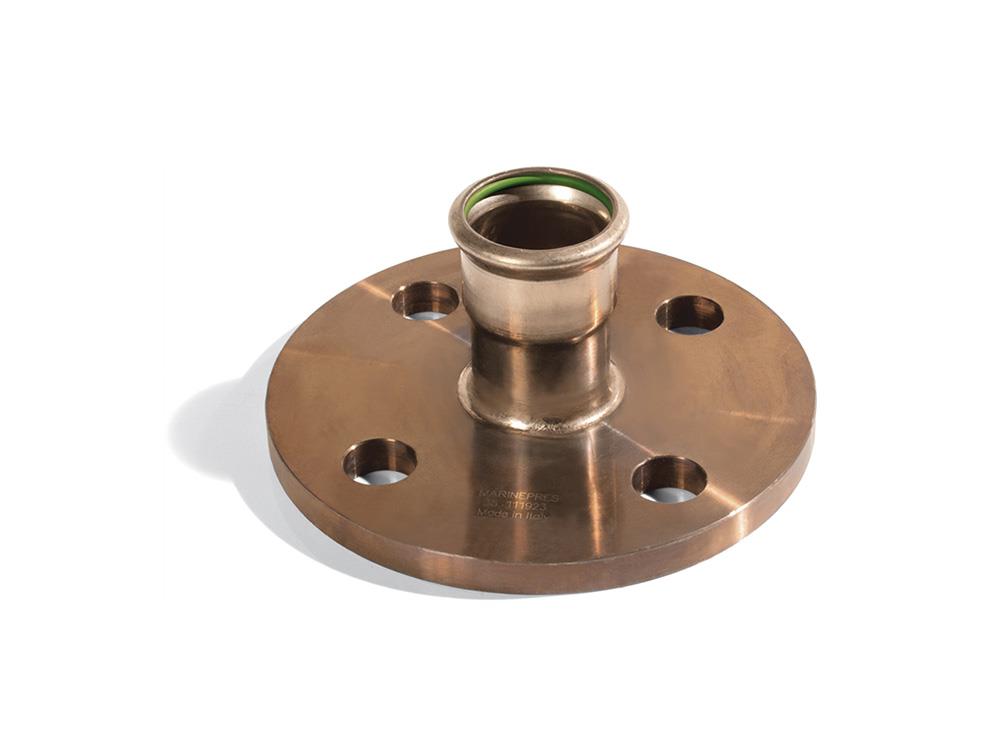

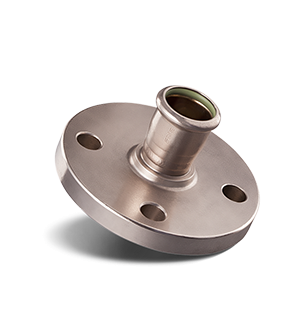

marinePRES system consists of pipes, fittings, tools and installation materials. 5 certifications, obtained by Raccorderie Metalliche on the marinePRES product, confirm quality and reliability for applications such as heating, cooling, compressed air and fire protection systems. The range of pipes made in copper/nickel 90/10 CuNi10Fe1.6Mn alloy according to the DIN86019 standard consists of seamless calibrated pipes, Ø15 to 108 mm. Joints are fitted with a “M-shaped” profile toroidal chamber, optimized thanks the 25 year research experience. Inside each fitting, a green FKM O-Ring, with a patented profile, is directly fitted at the end of production.

Why chose
marinePRES

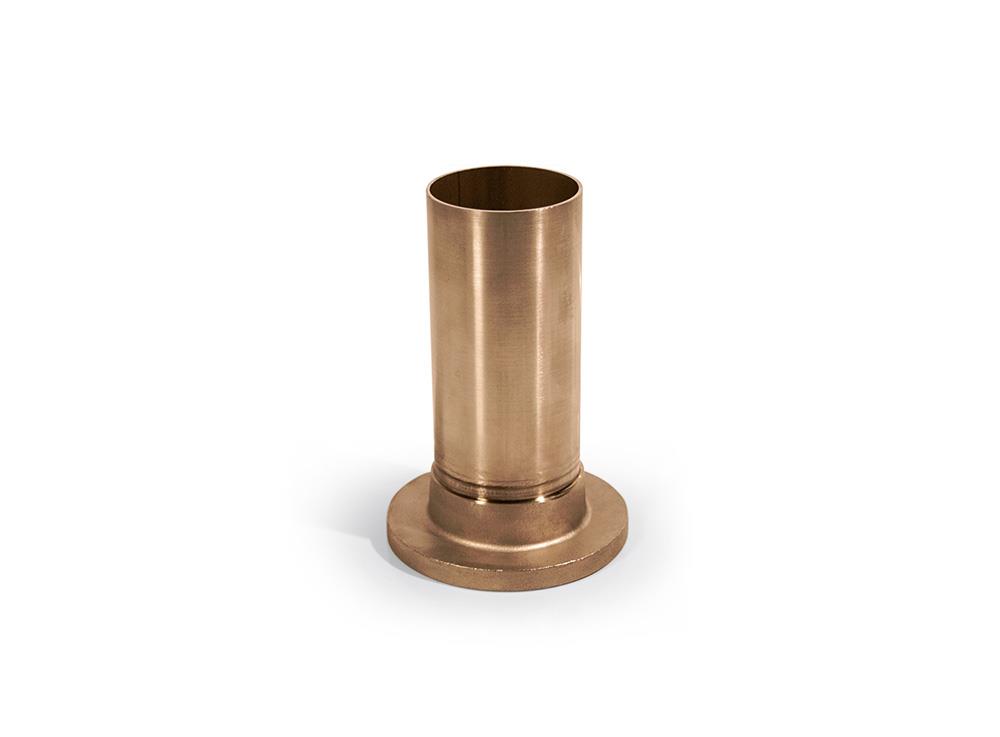

A wide range of fittings and pipes Ø 15-108 mm, in copper/nickel 90/10 CuNi10Fe1.6Mn according to the DIN86019 standard.

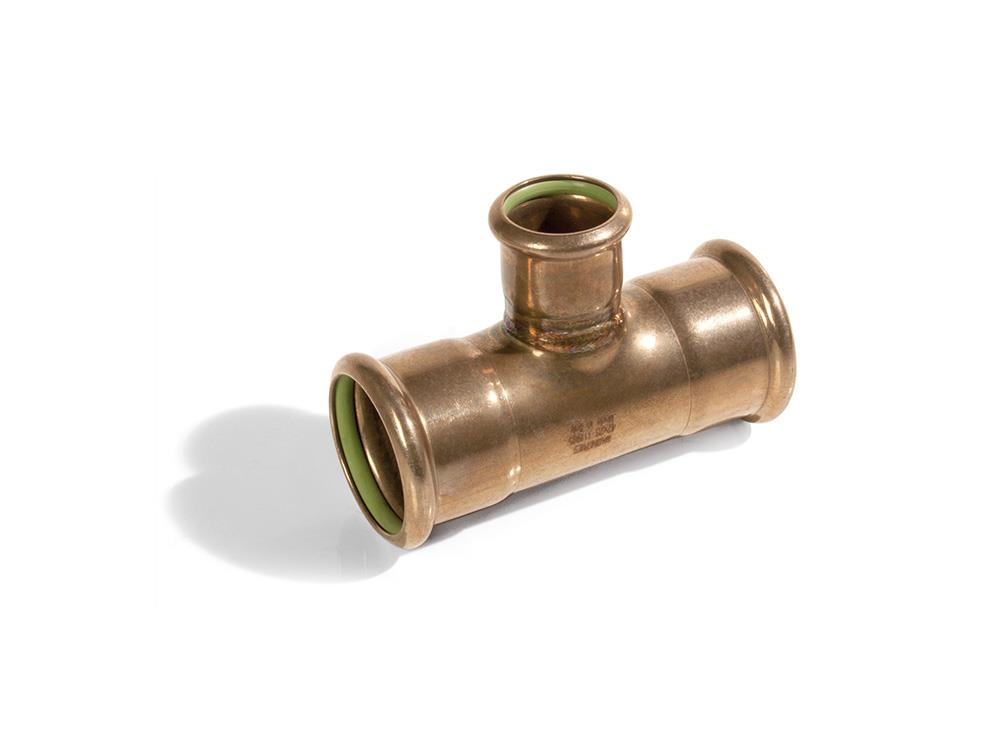

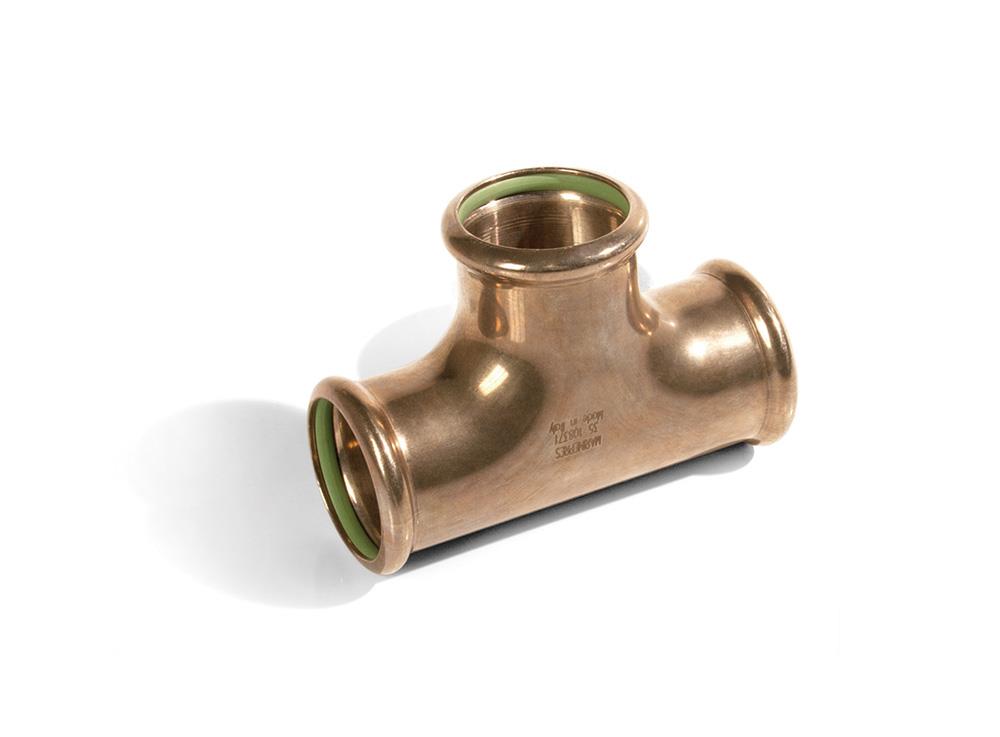

A wide range of seamless Tees, patented by Raccorderie Metalliche

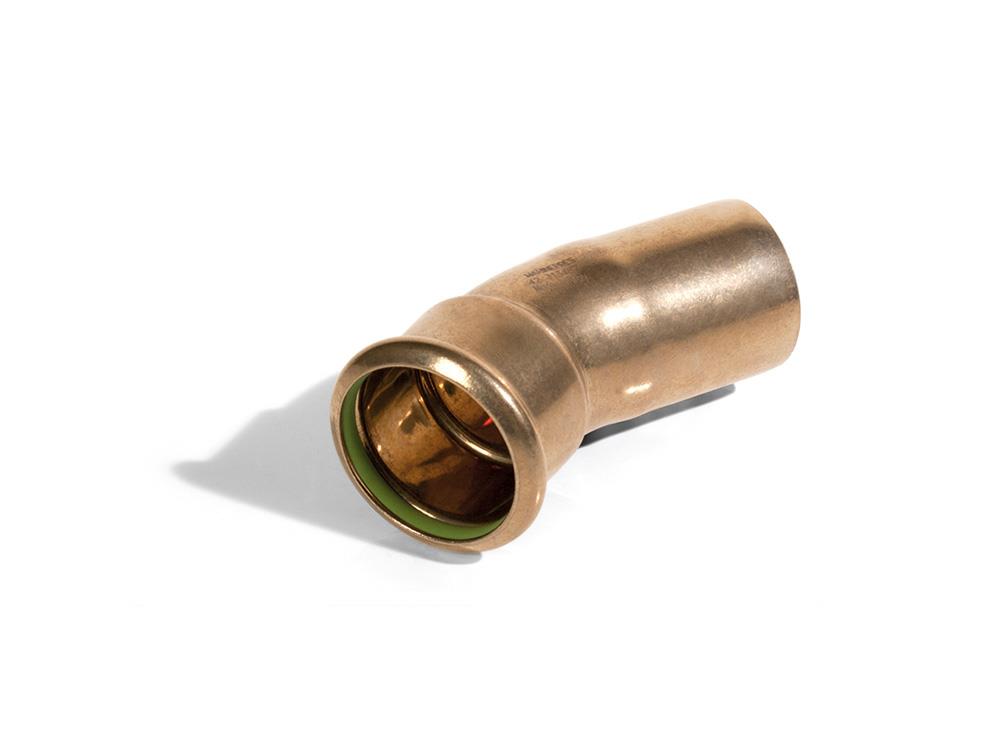

A wide range of reliable fittings with the Raccorderie Metalliche patented O-Ring in FKM.
More than 14,000 square meters available for the products warehouse
A wide range of approved pressing machines to be used for the marinePRES system
A solution with the best quality-price ratio in terms of products and services
100% Italian know-how.

Where to use
marinePRES

Products and services are developed to solve at best the different installation problems and issues, aiming at quality, safety and speed.

marinePRES alloy is the best choice when the intrinsic anti-corrosion features of the material are required in the plant. The use of marinePRES by Raccorderie Metalliche is suitable on board ships and offshore platforms, at the presence of hydrocarbons, fire protection systems and in general for any application in saline and corrosive ambiences. Green FKM O-Rings can be used between -20 and +220°C, maximum pressure 16bar.
